1. What Is a Wall Washer?
In modern urban landscape and architectural lighting design, wall washers have become almost indispensable. They are not only a lighting tool but also a medium that blends architectural language with the art of light and shadow. Especially at night, rows of soft, even light strips extend the architectural silhouette, enhance spatial texture, and leave a strong visual impression.
However, achieving ideal wall washing is far more than just installing a line of lights. This article will systematically walk through the basic types, common applications, typical issues, and design strategies of wall washers, helping designers, engineers, and specifiers make more informed decisions.
2. Main Applications of Wall Washers
- Building facades: Nighttime façade lighting for office buildings, shopping centers, exhibition halls, and cultural landmarks.
- Urban landscapes: Used to enhance spatial depth in public art installations, park walls, or greenbelt edges.
- Commercial spaces: Hotel lobbies, storefront displays, or exhibition backdrops to create a refined atmosphere.
- Historical or heritage architecture: Solutions with low glare, high CRI, and minimal physical impact are particularly important.
3. Common Types of Wall Washers
3.1 Matrix Wall Washers
Equipped with multiple LED light sources arranged in a grid. Beam direction is adjustable and coverage is flexible. Narrow beam angles allow for long-distance projection, even reaching tens or hundreds of meters. Ideal for high-rise buildings and towers requiring tall façade washing.

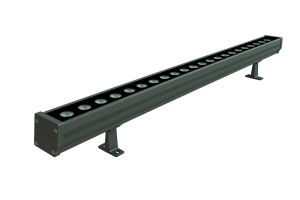

3.2 Rigid Linear Wall Washers
Characterized by a straight aluminum profile, these fixtures are robust, easy to install, and deliver uniform light. However, they are not well-suited for non-flat surfaces such as curved or wavy walls. Installation may result in dark seams or light breaks. Suitable for medium-height wall washing up to 8–10 meters.
3.3 Flexible Linear Wall Washers
These can bend horizontally or vertically to match irregular surfaces. There are two main forms: chain-type (modular) and extruded flexible linear washers. Ideal for curved curtain walls, arched facades, or undulating perimeter walls. Beam uniformity can reach up to 6 meters with no visible seams or interruptions.
4. Common Issues in Wall Washer Installations
4.1 Lighting Performance Problems
a) Insufficient effective height
Rigid fixtures struggle to conform to curves, often causing light breaks or dark seams at bends.
b) Poor brightness uniformity
Significant contrast between bright and dark areas leads to uneven visual experience.
c) “Piano key” effect
Repeating bands of uneven brightness appear at the bottom of the wall due to improper LED spacing or angle.
d) Light spots and color temperature drift
Low-quality optics can lead to hot spots or visible variations in color temperature across the surface.
e) Over/under-illumination at top and bottom
Uneven brightness distribution, especially at eye level, can cause discomfort and fatigue.
4.2 Reliability Issues
a) Poor thermal management
If design is suboptimal or material quality is poor, excessive heat buildup can cause early LED failure.
b) Abnormal light degradation
Rapid brightness loss is often due to poor heat dissipation or mismatched driver compatibility.
c) Inadequate waterproofing
Fixtures with poor sealing can suffer water ingress, leading to short circuits, flickering, or failure — particularly in coastal areas.
d) Fogging and condensation
Without proper anti-fog treatment, temperature differences can cause condensation under the lens, reducing light transmission and uniformity.
e) Weak LED module sealing
Inexpensive fixtures without proper encapsulation can absorb moisture over time, leading to corrosion and eventual failure.
5. Flexible Wall Washers: A Lighting Solution for Complex Surfaces
In today’s architectural lighting practice, designers are increasingly working with curved, folded, or sculptural facades — no longer just straight flat walls. These shapes bring identity and drama to buildings, but also present new challenges for lighting systems.
Rigid wall washers, limited by their fixed structure, often fail to conform to these surfaces. At bends or transitions, they tend to produce broken light patterns, shadow seams, or misaligned beams — undermining both design and performance. Installation becomes more difficult and maintenance more time-consuming.
Flexible wall washers were created to solve these challenges. With the ability to bend in both horizontal and vertical planes, they adhere closely to complex contours, ensuring the light flows naturally with the surface. This “light follows form” approach enables seamless integration between illumination and architecture — without compromising aesthetics.
Amid this shift, Panoray’s flexible wall washer was developed to meet the moment. It combines true bi-directional flexibility with excellent beam uniformity even when bent, eliminating the light breaks and seams common in rigid systems. It also features exceptional outdoor durability and ease of installation, making it suitable for everything from curtain walls to landscape features.
Panoray is more than just a product — it’s a system-level solution for designers who value clean light lines, architectural integrity, and real-world adaptability.
